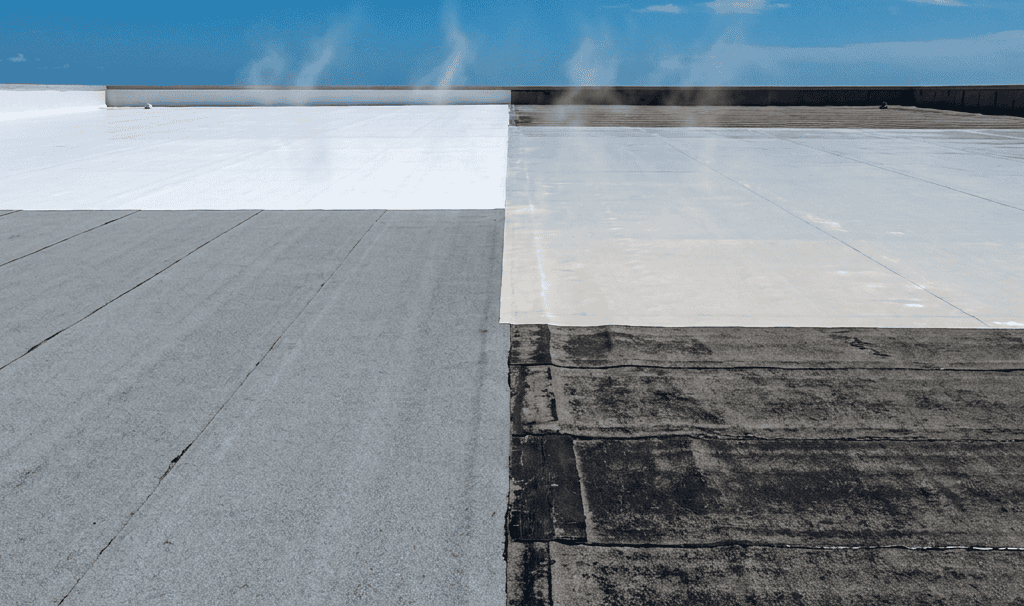

The Science Behind Roof Membrane Types

Roof membrane types are built from different chemistries, and those differences determine how they seal, stretch, age, and fail. On the Treasure Coast, where UV intensity, heat, and storm exposure are constants, that chemistry matters more than most homeowners realize. Understanding what’s actually in your membrane, and why it behaves the way it does, helps you make a smarter decision before you sign anything.

The roof membrane type you choose determines not just waterproofing ability, but how the material responds to UV exposure, thermal cycling, and physical stress across its entire lifespan.

What Roof Membranes Are Made Of

The category of single-ply membranes breaks into two chemical families: thermosets and thermoplastics. Thermosets like EPDM (ethylene propylene diene monomer) are permanently cross-linked polymers, once cured, the structure is locked in and can’t be re-melted. Thermoplastics like TPO (thermoplastic polyolefin) and PVC (polyvinyl chloride) soften under heat, which is why installers weld their seams rather than using adhesive.

Modified bitumen membranes start with asphalt and add polymers to change its behavior, making them a different system entirely from options like spray foam roofing. APP (atactic polypropylene) makes the asphalt stiffer and more UV-resistant. SBS (styrene-butadiene-styrene) makes it rubbery and cold-flexible. For South Florida, APP’s UV resistance is the more relevant property, sustained sun exposure does more cumulative damage here than temperature swings do, which is also why understanding how metal roofs perform in Florida is worth comparing before you commit to a membrane system.

How Vulcanization Affects EPDM Performance

Vulcanization is what makes EPDM rubber useful as a roofing material. Under heat, sulfur bonds are introduced into the polymer chains, locking the molecular structure into something flexible but dimensionally stable. Think of it like weaving threads into fabric rather than just laying them side by side, the cross-linking is what holds everything together under stress.

An EPDM membrane can stretch over 300% before tearing and return to its original shape. That elasticity handles thermal movement well. Roofs expand and contract with temperature changes, and a membrane that can’t move with the building will eventually crack at penetrations and inside corners, the same structural stress that makes hurricane roof straps and clips a critical part of the overall system in South Florida.

PVC takes a different approach, it uses plasticizers to stay flexible. The long-term problem is that plasticizers migrate out of the membrane over time. The early sign is surface chalking and slight stiffness at seam edges, well before any visible cracking. TPO was developed partly to solve this, using a polypropylene-rubber blend that doesn’t rely on plasticizers.

How the Main Membrane Types Compare

White membranes like TPO and PVC reflect solar radiation, which reduces cooling loads, a real benefit in Martin, St. Lucie, and Palm Beach counties, and a reason they’re frequently paired with a complete waterproofing system on low-slope roofs. That doesn’t make them universally superior. PVC outperforms in environments with grease or chemical exposure, which is why it’s standard on restaurant rooftops. TPO is the more common pick for commercial roofing because it welds cleanly and avoids the plasticizer problem. The right choice depends on your roof’s specific exposure and use.

Single-Ply vs. Multi-Ply: What Actually Differs

Redundancy

Single-ply membranes install as one layer. Faster and cheaper, but there’s no backup if a seam fails or the membrane is punctured. Multi-ply systems like modified bitumen stack layers, so surface damage doesn’t immediately mean a leak. If your roof has equipment, multiple penetrations, or regular foot traffic, that redundancy is worth the added cost.

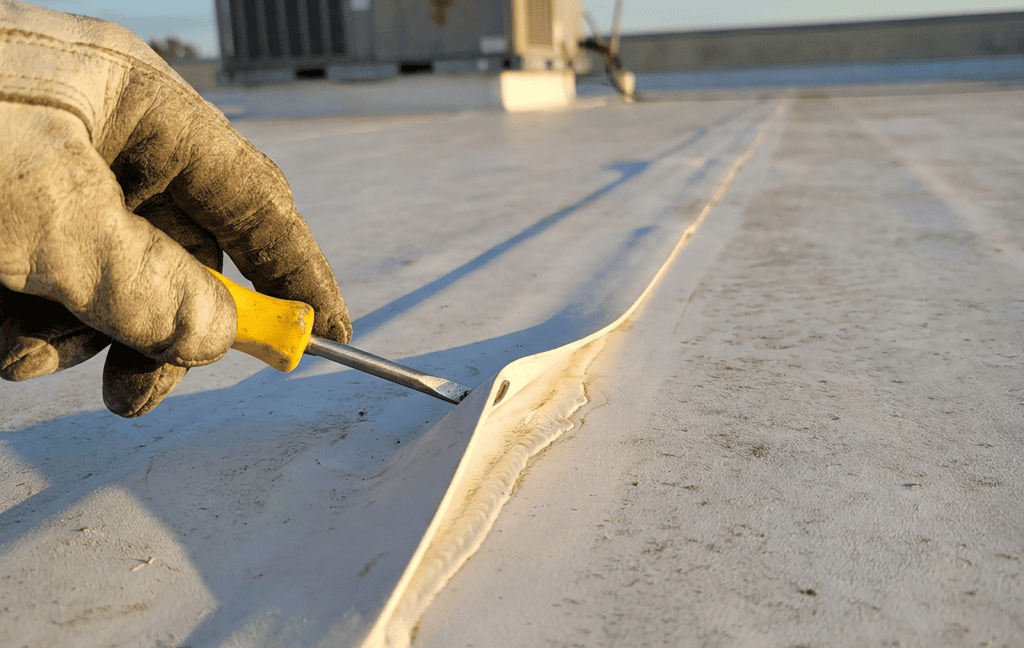

Where Failures Happen

Single-ply roofs fail at seams. Heat-welded TPO and PVC seams, done correctly, are stronger than the membrane itself. Done incorrectly, wrong temperature, dirty surface, insufficient overlap, they can look visually fine for a full season before water starts showing up inside. By then, the damage usually runs deeper than the membrane. Seam inspection at job completion isn’t optional; it’s the only way to catch a problem before it becomes a repair.

What Makes Sense in South Florida

APP modified bitumen is a practical residential choice here. It handles UV load well, and torch-applied installation produces a reliable bond in humid conditions. TPO is gaining ground too, partly for its reflectivity and partly because more certified installers in the region are trained on it. No membrane is a wrong answer outright, a well-installed second-tier product will always outlast a premium one that was put down carelessly, which is why contractor selection matters just as much as material spec when you’re planning a roof replacement.

What ASTM Testing Actually Tells You

Most roof membrane failures in the field trace to installation, not material defects. ASTM standards, D4637 for EPDM, D6878 for TPO, set minimum thresholds for tensile strength, elongation, seam strength, and flexibility. Passing those tests confirms a product performs under controlled lab conditions. It doesn’t guarantee the crew welding seams in South Florida heat with a dirty roller will match that performance on your roof.

ASTM compliance is a useful starting point for comparing products, and scheduling a roof tune-up is one of the best ways to see how your current membrane is actually holding up against those benchmarks. The actual finish line is installer certification, documented seam overlaps, and a completed inspection before the job closes, and if you’re insuring a Florida home, knowing what’s involved in a wind mitigation inspection is equally worth your time.

The chemistry sets the ceiling on what a membrane can do. Installation determines whether your roof gets anywhere near it.

Choosing a Membrane You Can Trust

At FoxHaven Roofing Group, we install and maintain TPO, EPDM, and modified bitumen systems across Martin, St. Lucie, and Palm Beach counties, and every system we put down comes with a workmanship warranty built for what Florida roofs actually face. We don’t just match you to a membrane spec sheet. We walk the roof, account for your exposure and use, and make sure the crew welding those seams is certified to do it right the first time. If you’re ready to talk through which membrane makes sense for your property, contact our team today.

Frequently Asked Questions

What is a membrane roof?

A membrane roof is a continuous, waterproof layer applied over a flat or low-slope roof to prevent water from reaching the roof deck below. Unlike shingles that shed water through overlap and gravity, a membrane seals the surface as a single system. It’s the standard approach for any roof that can’t rely on steep pitch alone to stay dry.

What types of roof membranes are available for flat or low-slope roofs?

The most common roof membrane types are TPO, EPDM, PVC, and modified bitumen, each suited to different climates, budgets, and performance demands. TPO and PVC are thermoplastic membranes heat-welded at the seams, while EPDM is a synthetic rubber that uses adhesive or ballast to stay in place. Modified bitumen is the closest descendant of traditional built-up roofing and works well where a more familiar installation method is preferred.

What is the purpose of a roof membrane?

The core purpose of a roof membrane is waterproofing, keeping moisture out of the building envelope where it causes rot, mold, and structural failure. Beyond that, certain roof membrane types also contribute to energy efficiency by reflecting solar heat or providing added insulation. It’s the layer that makes a flat roof functional, not just structurally possible.
